About Bonito GigActiv GA3005 Ultra Wideband

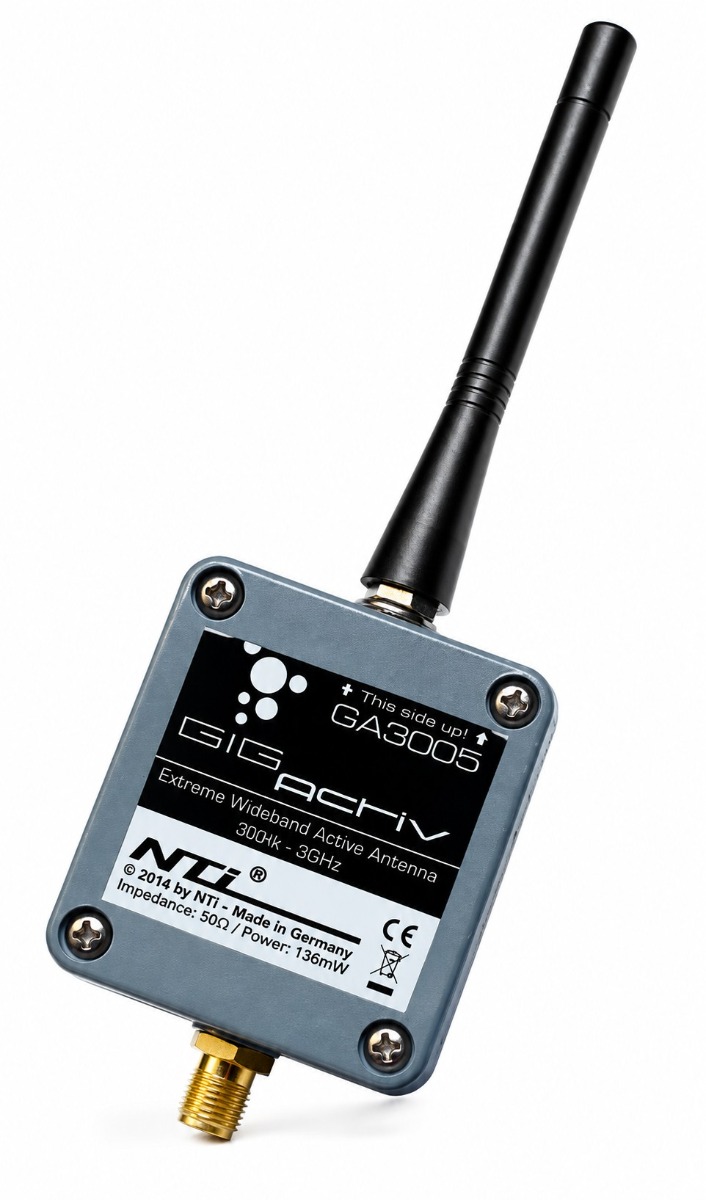

Where space is at a premium or you live in an area where an antenna is considered an undesirable element in neighborhood, the new GigActiv GA3005 is the ideal solution for the avid listener with a wide band receiver. The low noise GigActiv 3005 Extreme Wideband Active Antenna by NTi covers the whole frequency range from 9 kHz – 3 GHz. The antenna radiator measures only 10 cm (approx 4 inches) and so the unit can be mounted unobtrusively. The antenna requires a supply voltage of5 –15V DC(max. 120mA) fed through the coax cable via the standard suppliedDC interface CPI3000DP. It can also be powered via USB with slightly reduced performance. This is perfect for portable use in combination with a PC, which powers the antenna or the antenna can be powered autonomously and noise-free with a separate USB power bank. For shortwave and above 200MHz an IP3 oftypically > +30dBm is achieved.

USB-powering possibleLarge supply voltage range of 5-15V. Thus it can be powered by a regular 12 Volt power supply or even via USB. Autonomously and noise- free via a separate USB Power Bank as well.

Whats in the Box?- GigActiv GA3005- Radiator- Junctionbox CPI3000DP (DC interface)

Dimesions incl Radiator:185 x 57 x 35mm(7.28 x 2,24 x 1,38 inch)

Made in Germany



Key Features/Specifications:

  • Frequency range : 9 kHz - 3 GHz
  • Power Supply: 5,5V - 15V
  • Gain: + 3dB
  • Upper Frequency Limit (-1db): 3000 MHz
  •  IP3: > +30 dBm Typ. IP2: > +50 dBm Typ.
