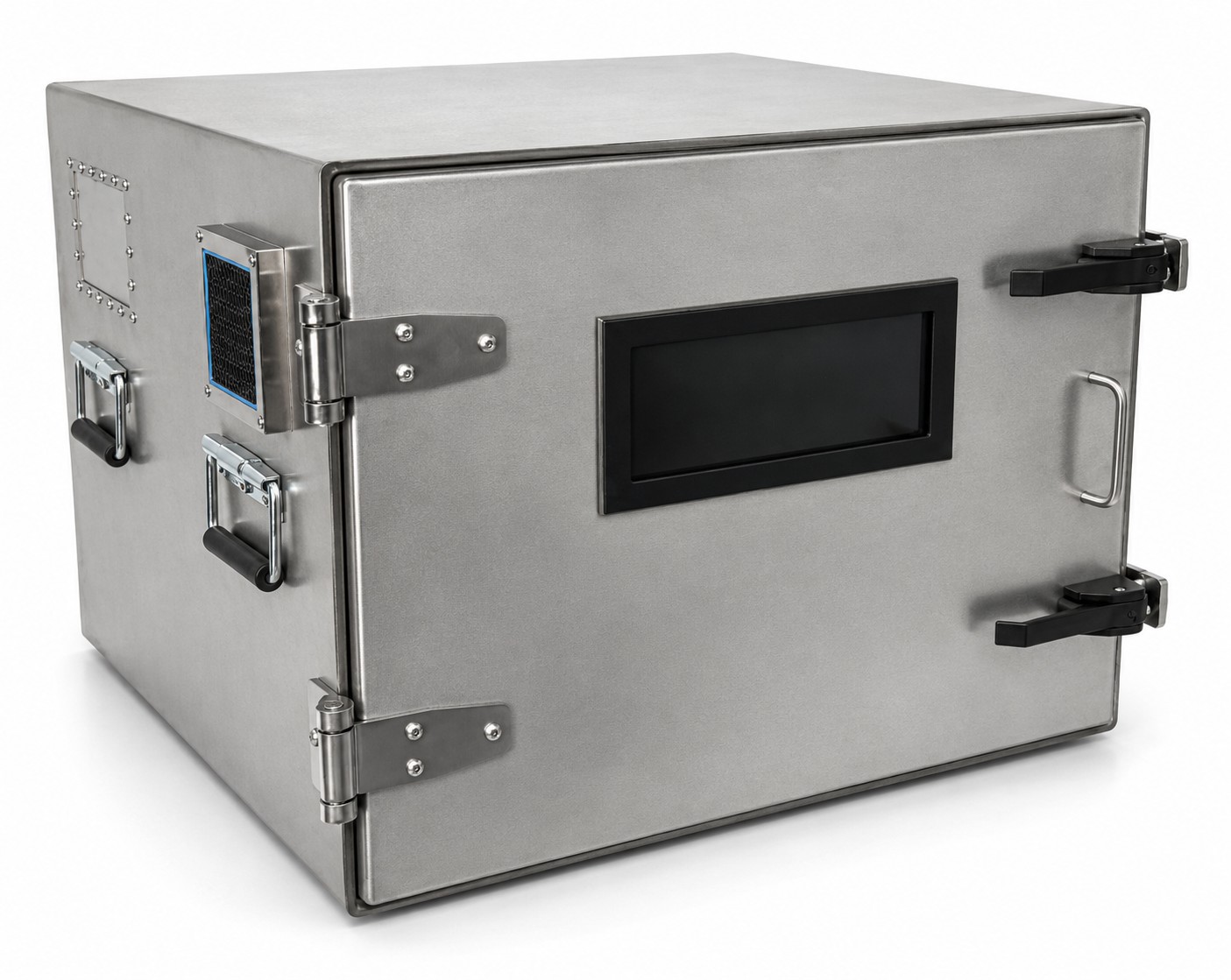

Ramsey STE5000M RF Shielded Test Enclosure

The Ramsey STE5100M RF Shielded Test Enclosure is a professional-grade RF isolation chamber designed for wireless device testing, product development, EMC investigations and advanced RF validation applications. Offering a spacious internal test environment and exceptional shielding performance, the STE5100M is ideal for testing larger devices, multiple devices simultaneously or equipment requiring extensive connectivity and power options.

Built to order and fully customisable, the STE5100M is supplied as a configurable platform that can be tailored to meet the exact requirements of your testing environment. From custom I/O interfaces and filtered power systems to ventilation, monitoring and device-specific mounting solutions, every enclosure can be engineered to suit your application.

Designed for use by wireless manufacturers, test laboratories, research organisations, government agencies and engineering teams, the STE5100M provides a highly controlled RF environment for accurate, repeatable and interference-free testing.

Key Features

• Built to order and fully customisable to customer requirements
• Professional-grade RF shielded test enclosure
• Suitable for Wi-Fi, Bluetooth, RFID, cellular and IoT testing
• Designed for wireless product development and validation
• RF-tight illuminated viewing window
• Front-loading swing-away access door
• Double-lip RF-tight gasket system
• RF absorbent foam liner as standard
• Universal precision-machined I/O interface panels
• Integrated 6-outlet power strip
• 120mm passive ventilation system
• Optional AC and DC fan cooling systems
• Security locking options available
• High-performance RF shielding technology

Applications

The STE5100M is suitable for a wide range of professional RF testing applications, including:

• Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 6E testing
• Bluetooth device validation
• RFID system development
• 3G, 4G and 5G device testing
• IoT product evaluation
• EMC pre-compliance testing
• Wireless product development
• Research and development laboratories
• Production and quality assurance testing
• Government and defence communications projects
• Signal isolation and RF containment applications

Its larger internal dimensions make it particularly well suited to testing rack-mounted equipment, networking hardware, gateways, routers and complex multi-device systems.

Technical Overview

The STE5100M is engineered to provide a highly controlled RF environment by significantly attenuating radio frequency signals entering and leaving the enclosure. Typical shielding performance exceeds 90 dB at 2.4 GHz and 85 dB at 5.8 GHz, helping to eliminate external interference and improve testing accuracy.

A key advantage of the STE5100M is its modular and configurable architecture. Customers can specify a wide range of connectivity options including USB, Ethernet, fibre optic, serial, audio, video and RF connectors. Filtered AC and DC power interfaces are also available, ensuring devices under test remain fully operational while maintaining enclosure shielding integrity.

The enclosure incorporates an RF-tight illuminated viewing window, allowing operators to monitor device status and displays without opening the chamber. Combined with the absorbent RF foam liner and precision-engineered construction, the STE5100M provides a dependable platform for demanding RF testing and validation projects.

Available Models

The Ramsey 5100 Series is available in three standard configurations:

• STE5000M – Standard large-format RF shielded test enclosure
• STE5100M – Enhanced enclosure with RF-tight illuminated viewing window and integrated power strip
• STE5125M – Extra-height enclosure designed for larger equipment and more demanding test environments

Each model can be further customised with a wide range of interface options, power configurations, ventilation systems and internal layouts to meet specific testing, development or research requirements.

Custom-Built Solutions Available

Every Ramsey STE5000 Series enclosure is manufactured to order and configured to meet the exact requirements of the end user. Available customisation options include:

• Custom I/O panel configurations
• USB, Ethernet and fibre optic interfaces
• RF and antenna feedthroughs
• Filtered AC and DC power entry
• Enhanced ventilation and cooling systems
• Security locking systems
• Internal racks, shelves and mounting fixtures
• Country-specific power configurations
• Bespoke connector layouts and control panels

If you require a customised RF shielded enclosure solution, please contact our team to discuss your application and receive a tailored quotation.
