SOLD! B GRADE RM KL703 25-30 MHz (500W) Linear Amplifier (GOOD CONDITION)
About SOLD! B GRADE RM KL703 25-30 MHz (500W) Linear Amplifier (GOOD CONDITION)
B - Grade (Good Condition)

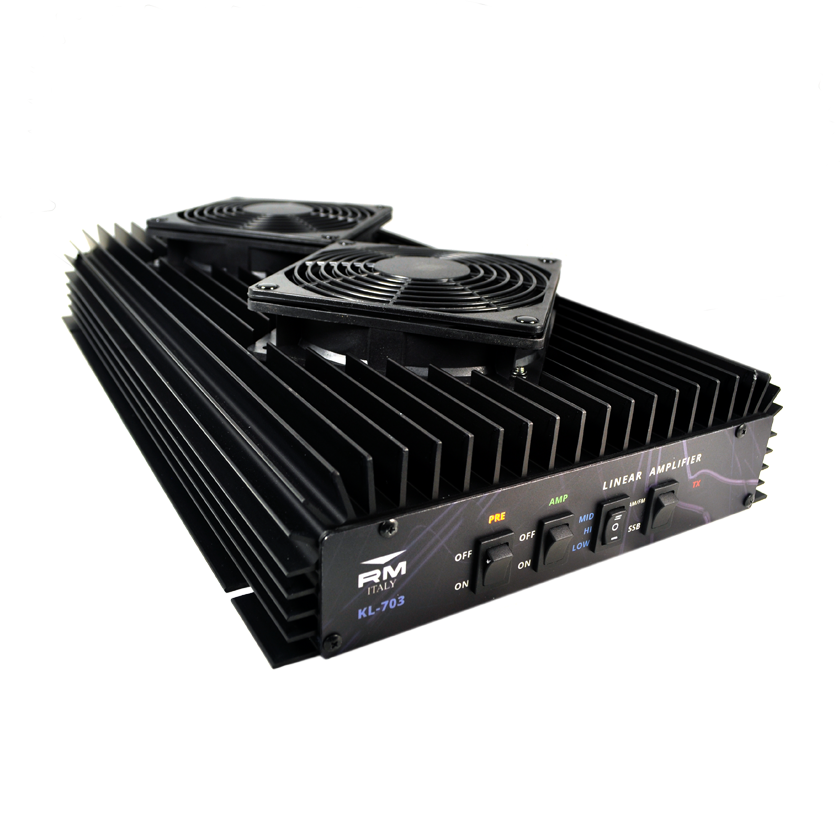

The KL703 is a 12V linear amplifier for use in the 25–30 MHz frequency range, with a drive power of 1 to 35W in all modes. The KL703 has a three-position output power selector via a switch on the front panel, two heatsink cooling fans and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel. band).
Specification
- Operation Frequency: 25-30 MHz (10m Amateur HF Band)
- Modulation Types: SSB,CW,AM, FM, data etc (All narrowband modes)
- Transistor: 16x RM 3 MOSFET
- Max I/P Current: 50A
- Power Supply: 13.8VDC+/- 1V 60A
- Input Fuse (Internal): 4x15A (Auto Fuse)
- Input RF Power: 1-35W max (All modes)
- Output RF Power: 500W max
- Maximum bypass power (Amplifier off): 50W max
- Input VSWR: 1.1-1.5:1
- Output VSWR Maximum: 2.5:1
- Harmonic Output: >-50dBc 25-30MHz
